Rails

Role#

With this page, you will know what are Rails and how to use them.

Introduction#

Historically rails of tiles were introduced by APPLE™ on their iPod® devices where music covers were displayed using a widget known as Carousel® which is able to scroll images horizontally or vertically. Nowadays, this widget is present everywhere in any UI framework.

Rails widget#

Under Dana, a RailView is an horizontal RecyclingListView of Tiles displayed on screen.

Rails events#

RailView emits some events: (and you can override them under the named statics structure)

• rail.selectionChange => onRailSelectionChange() when rail selection has changed,
• rail.selectionStart => onRailSelectionStart() at the start of the rail,
• rail.selectionEnd => onRailSelectionEnd() at the end of the rail,
• rail.focus => onRailFocus() when rail is focused.

Tiles position#

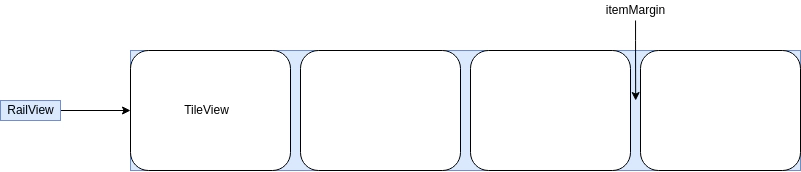

Tiles are automatically positioned behind the previous one using itemMargin property as margin space between items. You can override itemMargin property to manage margin between items.

Properties#

• The property dataItem represents the data of the current Tile,
• RailView is a RecyclingListView class. So you can configure all RecyclingListView properties as you need: navigationType, nbViewBefore, nbViewAfter, cyclic, itemMargin, etc. (cf. RecyclingListView).

Navigation behavior#

RailView gets internal back API method that is selecting the first item of the rail (and then returns a value true or false)

To navigate in the Rail, your screen should call for example:

onKeypressRIGHT: function (key) { return this.rail.next(key); },

onKeypressLeft: function (key) { return this.rail.previous(key); },

onKeypressBack: function (key) { return this.rail.back(key); }

API Reference#

This UI component is part of Dana’s vendor named wtv-vendor-components which includes a JSdoc description.

See the component AbstractRailView under views category of this components API.
